How to Use a Socket Tester: A Step-by-Step Guide with the MASTECH MS102

Electrical outlets are something we use every day, but rarely check. A faulty outlet can lead to electric shock, appliance damage, or even fire hazards.

A socket tester like the MASTECH MS102 makes it easy to quickly verify if your outlets are wired correctly and safe to use.

In this guide, we’ll show you exactly how to use it, even if you have no electrical experience.

What Is a Socket Tester?

A socket tester is a small device that plugs directly into a wall outlet to check for common wiring issues such as:

• Missing ground
• Reversed polarity
• Open neutral
• Open live

It provides instant visual feedback using indicator lights.

When Should You Use a Socket Tester?

You should test your outlets if:

• You just moved into a new home
• You installed or replaced an outlet
• You notice flickering lights or unstable power
• You want to perform routine safety checks

How to Use the MASTECH MS102 (Step-by-Step)

1. Turn on the power

Make sure the outlet you’re testing is powered (circuit breaker is ON).

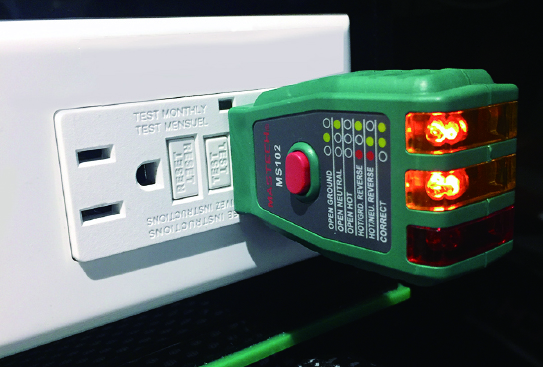

2. Plug the tester into the outlet

Insert the MS102 directly into the socket.

3. Observe the indicator lights

The tester will display a combination of lights. Each pattern corresponds to a specific wiring condition.

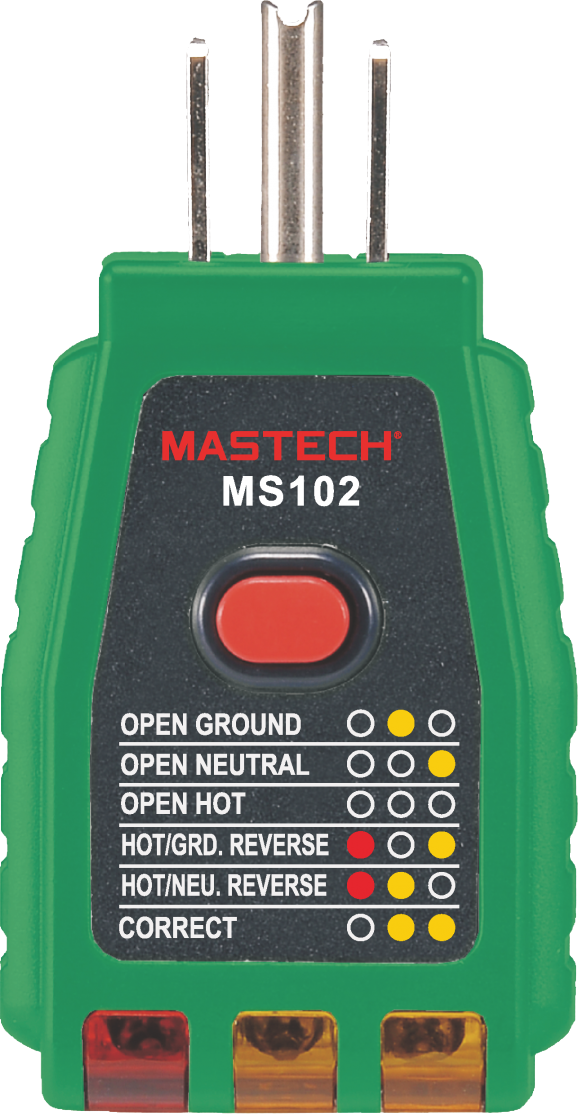

4. Compare with the reference chart

Check the label on the tester to interpret the light pattern.

5. Record or note any issues

If the reading shows a fault, avoid using that outlet until it is fixed.

Understanding the Results

Here are the most common results and what they mean:

⚠️ Open Ground
→ Ground contact not connected

⚠️ Open Neutral
→ Neutral contact not connected

⚠️ Open Live (Hot)
→ Hot contact not connected

⚠️ Hot/Ground Reversed
→ Hot and ground contacts are swapped

⚠️ Hot/Neutral Reversed
→ Hot and neutral contacts are swapped

✅ Correct Wiring
→ Receptacle is wired properly and safe to use

Important Safety Notes

• Never open outlets unless you are qualified
• If you detect a wiring issue, contact a licensed electrician
• Do not continue using outlets with serious faults
• Always test multiple outlets in the same area for consistency

Why Regular Testing Matters

Outlets can loosen, degrade, or be incorrectly installed over time. Regular testing helps you:

• Prevent electrical hazards
• Protect appliances
• Ensure your home meets safety standards
• Gain peace of mind

Final Thoughts

The MASTECH MS102 Socket Tester is a simple but powerful tool for every homeowner.

In just a few seconds, you can identify hidden electrical problems and act before they become serious.

When it comes to electricity, a quick check today can prevent a major issue tomorrow.
